🧠 MODERN MICROPROCESSOR
Construction & Working Explained Simply
⚙️ WHAT IS A MICROPROCESSOR?
A microprocessor is the brain of a computer—a tiny electronic chip that performs calculations and makes decisions using binary code (0s and 1s). It is also called a Central Processing Unit (CPU) on a chip.
🏗️ CONSTRUCTION: How It's Made
| Component | Function |
|---|---|
| Transistors | Tiny switches (millions or billions) that control electricity flow. |
| Silicon Wafer | Base material; transistors are etched on this using photolithography. |
| Integrated Circuits | Groups of transistors form logic gates, ALU, registers, etc. |
| Layers & Packaging | Multilayered wiring connects parts; protected inside a chip casing. |
Example: Intel Core i9 has over 10 billion transistors!
🧪 MANUFACTURING PROCESS (Simplified)
-
Design the architecture (using hardware description languages like Verilog).
-
Photolithography prints tiny transistor patterns on a silicon wafer.
-
Etching & doping control how each transistor behaves.
-
Metallization adds copper/aluminum lines to link components.
-
Packaging seals and protects the chip with pins to connect to the motherboard.
⚡ WORKING: How It Operates
A microprocessor follows instructions stored in memory step-by-step using a cycle called the Fetch-Decode-Execute loop:
🔁 The Instruction Cycle
| Step | What Happens |
|---|---|
| Fetch | Get the next instruction from RAM (via address bus). |
| Decode | Understand what the instruction means. |
| Execute | Perform the operation (e.g., add numbers, move data). |

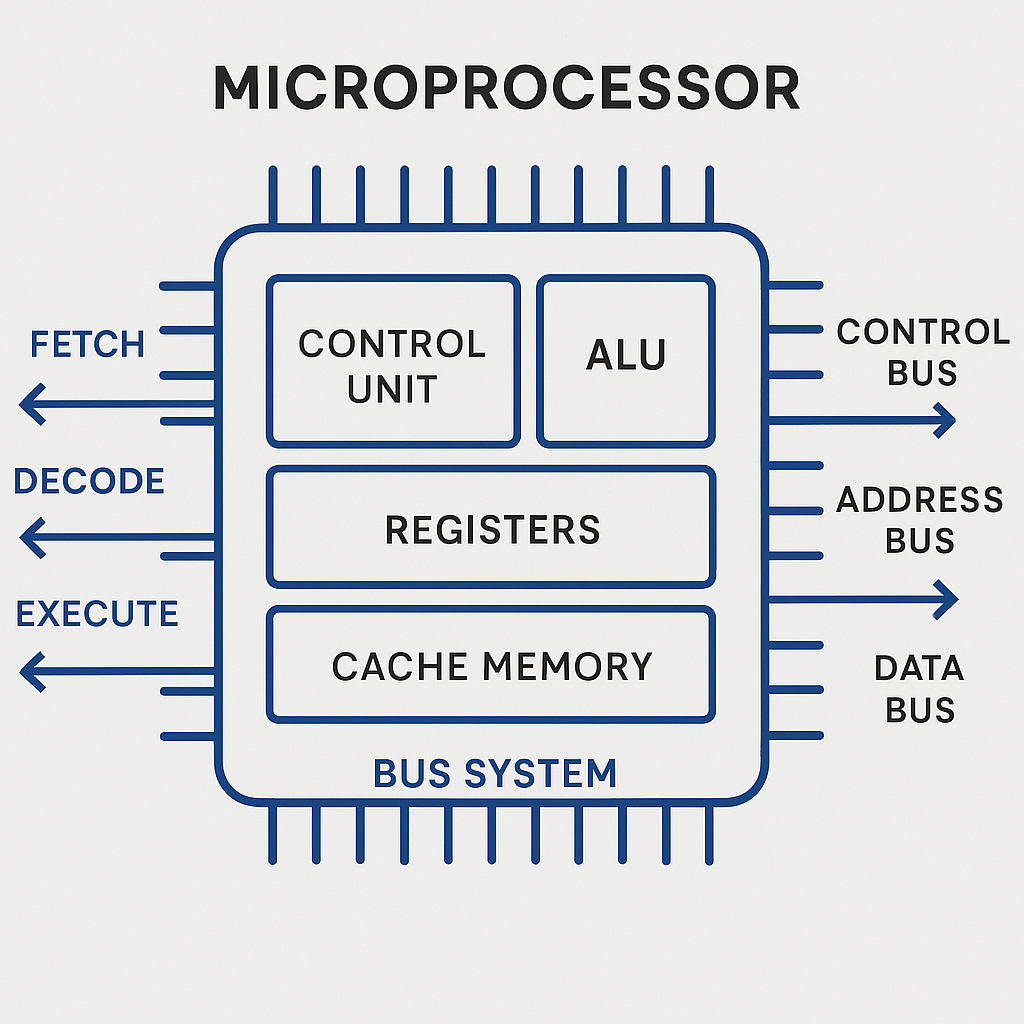

🧩 MAIN PARTS INSIDE A MICROPROCESSOR
| Part | Role |
|---|---|
| ALU (Arithmetic Logic Unit) | Performs math and logic (add, AND, compare) |
| Registers | Small memory for quick data access |
| Control Unit | Directs all operations based on instructions |
| Cache Memory | Fast memory to speed up data access |
| Bus System | Wires that transfer data (address, control, data buses) |
🧠 MODERN FEATURES (In Advanced CPUs)
| Feature | Benefit |
|---|---|
| Multi-core | Multiple processors on one chip = faster |
| Pipelining | Executes multiple instructions at once |
| Hyper-threading | Simulates more cores using smart scheduling |
| Clock Speed (GHz) | Faster cycles per second |
| Power Management | Optimizes energy usage |
📌 Summary
-
A microprocessor is made from billions of transistors etched on silicon.
-
It uses a fetch-decode-execute loop to process instructions.
-
Modern CPUs are powerful, multi-core, and efficient, enabling everything from smartphones to supercomputers.
